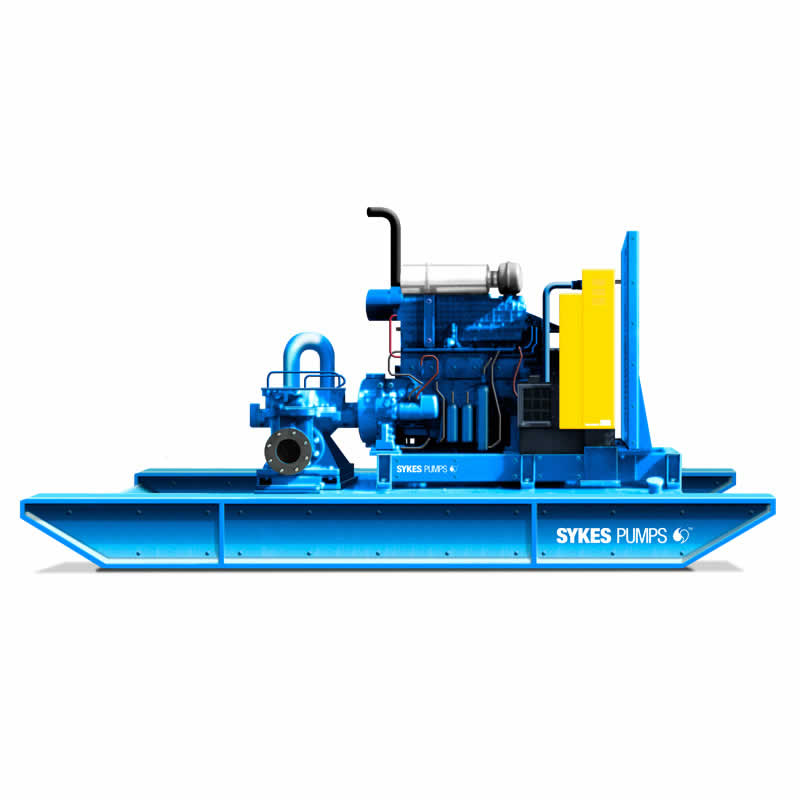

DRC 150 Medium & High Head

The DRC 150/150 is known for his highly efficient design which allows a sustained performance with low operating costs. This unit is a high pressure clean water pump typically used for jetting and pressure testing. The DRC 150 can operate at heads of up to 190 metres, making it ideal for creating temporary fire-mains and other similar applications. A horizontal split casing simplifies the maintenance process and allows internals to be inspected without removing pipework or other components.

Key Features

Feature

Hours of unattended

operation for continuous use

Hard wearing parts

wearing parts for robust applications

Simple to maintain

Flows up to

118 litres per second

Available as

a skid mounted unit

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Renewable shaft sleeves

Product Specification

Performance : Max head: 190 m
Max flow: 118 l/s
Max solid: Clean water
Weight : 7250 kg with fuel 5135 kg without fuel
Dimensions (L x W x H) : 5330 x 2385 x 2260 mm
Fuel capacity : Tank size on application, separate bunded tanks available.
Pipe connections : Suction: 150 NP25
Discharge: 150 NP25 Option Bauer Couplings
Fuel Consumption : Full load @ 1800 rpm: 71.4 litres/hour
Energy Efficient duty point : Fuel Consumption @ 1500 rpm: 26 litres/hour

Downloads

Accessories

6″ FOOTVALVE AND STRAINER
6″ 10FT W/A SUCTION HOSE BAUER – SUCTION ONLY
6″ W/A SUCTION HOSE X 6MTS – SUCTION ONLY
6″ 10FT 16BAR HIGH PRESSURE NP16 FLANGED HOSE
6″ FLANGED NP16 45* BEND
6″ FLANGED NP1690* BEND
6″ FLANGED NP16 GATEVALVE
6″ FLANGED NP16 NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Environmental
Emergency pumping services
Refineries
Water and waste treatment
Local authorities
Manufacture and industry
Power stations
Tunnelling
Agriculture
Film production & events
